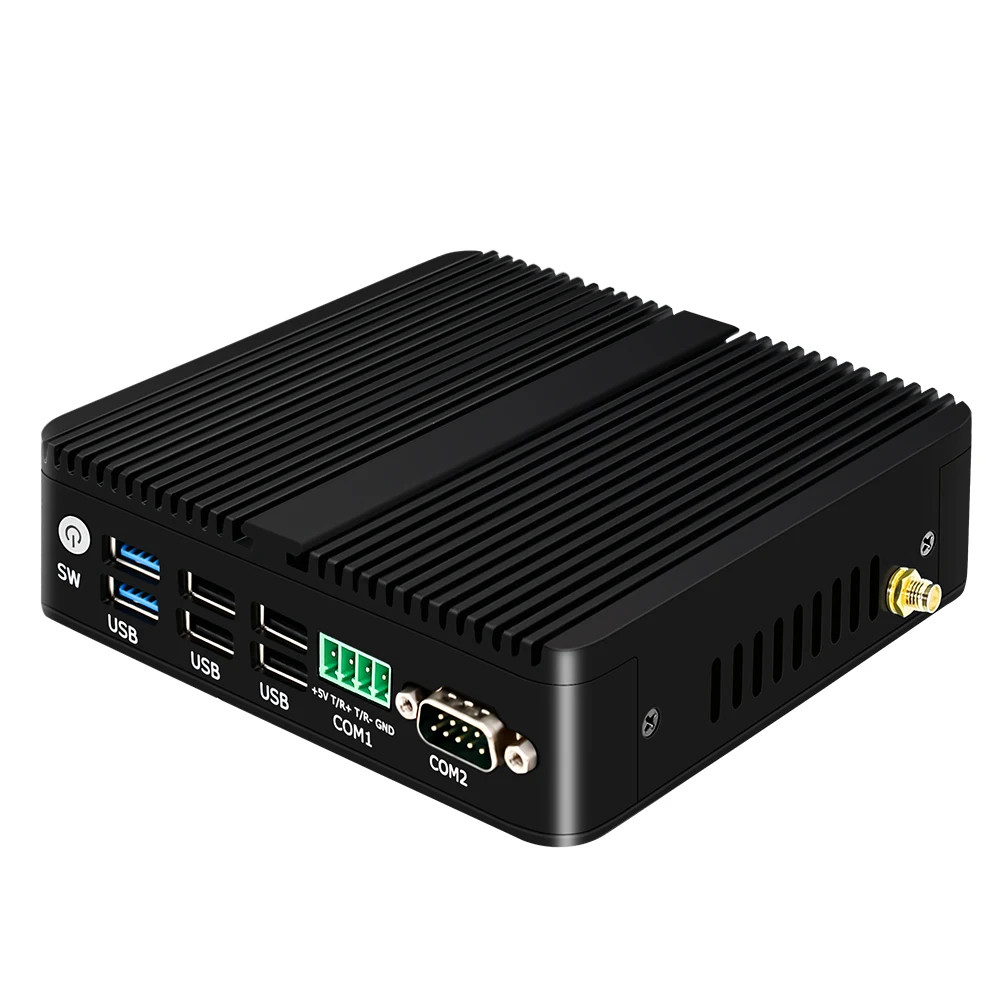

2.5G Intel N100 12th Gen Firewall Router 4x i225-V LAN 2*COM RS485 RS232 Fanless Industrial Mini PC 2x4K PVE Proxmox Server
£132.63 – £253.12
- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X2D
- Processor Brand: Intel
- Processor Model: Pentium J6426/Celeron J6413
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: kingnovyPC
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
Processors | Cores & Threads | L3 Cache | Base Frequency | Max Turbo Frequency | TDP |
Alder Lake Intel N100 | 4 cores, 4 threads | 6M | 3.40 GHz | 6W | |
Pentium J6426 | 4 cores, 4 threads | 4M | 2.00 GHz | 3.00 GHz | 10W |
Celeron J6413 | 4 cores, 4 threads | 4M | 1.80 GHz | 3.00 GHz | 10W |
Product Highlight
-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.2, 4xUSB2.0.
-1xDDR4 SODIMM non-ecc ram slot, support 3200MHz.
Storage:
J6426 model:
-Support three storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1xMSATA3.0 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
N100 model:
-Support two storage: 1xMSATA3.0 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-Support 1xHDMI2.0 and 1xDP1.4 dual 4K@60Hz video display.
-2xCOM ports: 1xPhoenix RS485+1xDB9 RS232.
-1xM.2 2230 WiFi slots, supports 802.11 AX WiFi6 module(optional).
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
Notice
Some Linux systems like pfSense etc maybe have not released new kernel to match 12th Gen Alder Lake-N yet, suggest to install version of following systems: OPNsense 23.x, Proxmox 7.1.2(no need check graphic, then upgrade to 7.4 version) etc. Please make clear before buying, DO NOT open dispute because of system issue.
Welcome to click the picture of VESA Bracket to order together if you need:
You must be logged in to post a review.
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) Customer provide specific requirement.
2) Factory draw the design draft.
3) Customer confirm the design draft.
4) Factory start mass prodution.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
