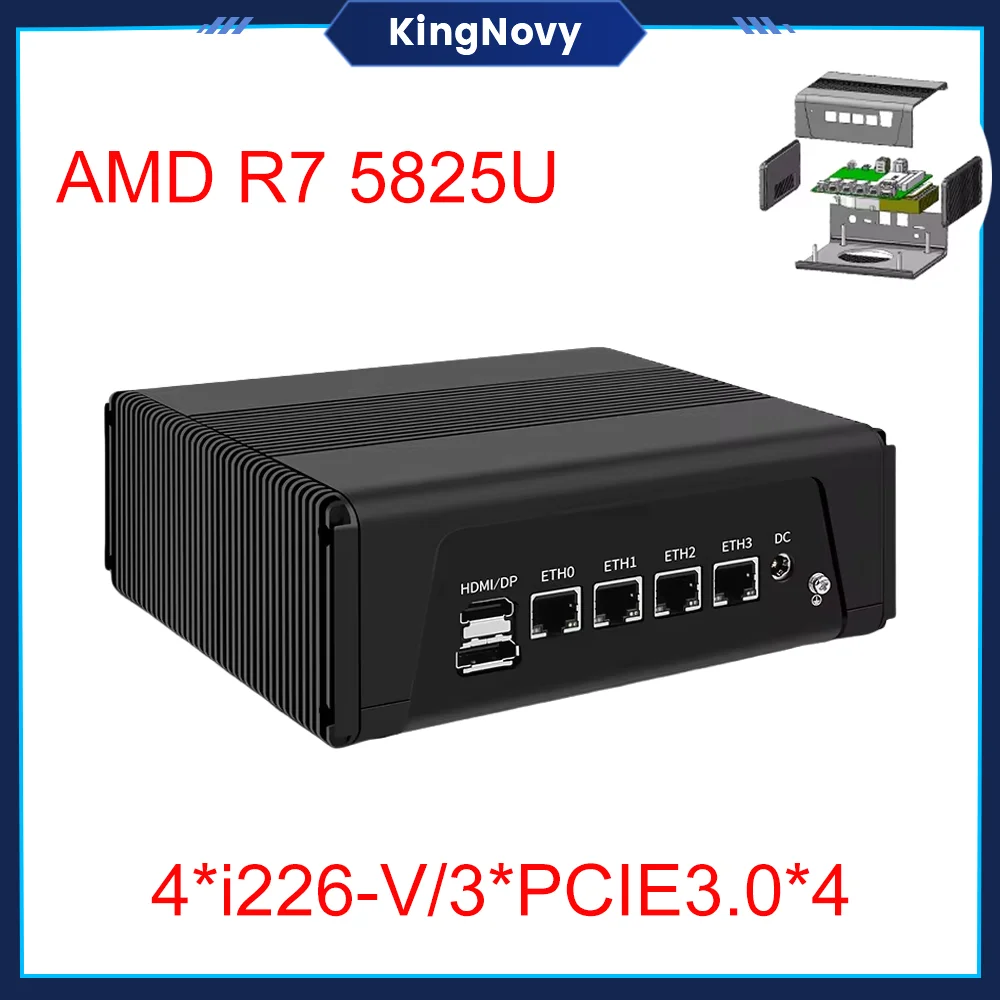

Firewall Fanless PC AMD Ryzen 7 5825U 5800U 5600U Mini Soft Router 4x Intel i226-V 2.5GNAS Server M.2 NVMe 3x4K UHD
£293.86 – £731.19
- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4F
- Processor Brand: AMD
- Processor Model: Ryzen
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: kingnovyPC
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
- Wireless: 1*M.2 2232
- Graphics: AMD Radeon Graphics
- Case Material: Brushed Aluminum Alloy
- Color: Black/Grey by random
- Storage Type: 2*M.2 NVMe 2280+2*2.5 inch SATA3.0
- Memory Type: 2*DDR4 None-ECC SODIMM Ram
- Netwok Ethernet: 4*Intel 2.5G LANs
Notice
Intel i226-V is a new network card, pfSense, ROS etc system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Graphics |
|
Ryzen 5 5600U |
6 cores, 12 threads |
16M |
2.30 GHz |
4.20 GHz |
15W |
AMD Radeon Graphics 7 Core 1800MHz |
|
Ryzen 7 5800U |
8 cores, 16 threads |
16M |
1.90 GHz |
4.40 GHz |
15W |
AMD Radeon Graphics 8 Core 2000MHz |
|
Ryzen 7 5825U |
8 cores, 16 threads |
16M |
2.00 GHz |
4.50 GHz |
15W |
AMD Radeon Graphics 8 Core 2000MHz |
Product Highlight
-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.1, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.
-Support five storage: 2xM.2 NVMe/PCIe3.0x4 2280 SSD(via M.2 2232 to 2280 PCB adapter board)+1xM.2 NVMe/PCIe3.0x4 SSD(an interface on the motherboard of CPU's side)+1×2.5''SATA3.0 SSD/HDD(internal mounting)+1×2.5''SATA3.0 SSD/HDD(external from knock-out hole).
-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.
-Full-featured Type-C support data, display, reverse charging.
-TF card slot support storage and system disk boot.
-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7×24 hours.
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
1×8010 Fan(gift, but will cover 2.5'' SATA mounting holes)
All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30. If you need, pay at this link.
DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Micron etc ORIGINAL brand ram and storage.
500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:https://www.aliexpress.com/item/1005003354242010.html
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for…)
You must be logged in to post a review.
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) Customer provide specific requirement.
2) Factory draw the design draft.
3) Customer confirm the design draft.
4) Factory start mass prodution.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
